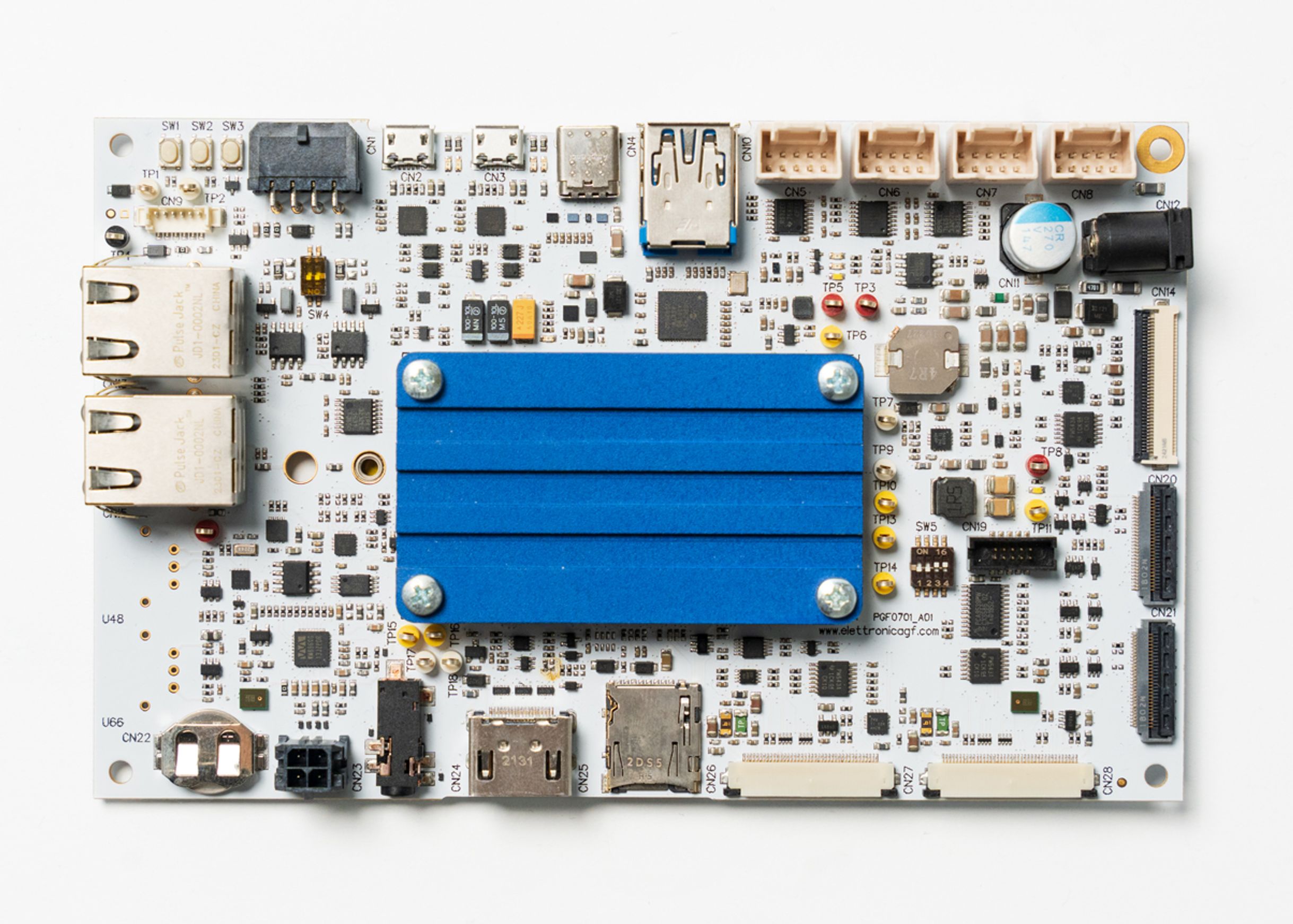

BiancaSBC
NXP i.MX 8M Plus
- Ready to use solution: start developing your product now
- Can be integrated in your product as-is or used as a starting point for a customization
- High performance, ready for IA-driven future
- Robust solution, ideal for rugged applications
- Powerful graphic performance, ideal to create next-generation HMIs
- Ideal for multimedia applications
- Supports all NXP i.MX8M Plus processor variants
- Compact dimensions only 160 x 100 mm
- Support Zaira SoM
- Flexible and expandable solution
- EGF SW Upgrade platform for updates through USB pendrives or OTA
CPU
- NXP i.MX8M Plus Arm® Cortex®
- Quad/Quad+NPU up to 1.8GHz
- Standard or Lite CPU options
- Neural Processing Unit (NPU) option: 2.3 TOP/s Neural
- Network performance
- Additional Cortex-M7 Core up to 800 MHz
STORAGE / BOOT MEMORY
- Up to 8GByte LPDDR4
- eMMC from 8 to 256 GB
DRAM MEMORY
- Up to 8GByte LPDDR4
- eMMC from 8 to 256 GB
MULTIMEDIA AND HUMAN INTERFACE
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. For more information, refer to NXP user’s manual.
- 4 display connectors available:
- MIPI-DSI Display (4-Lane)
- HDMI
- 2 x LVDS
- 2 camera connectors available
- MIPI-CSI Camera (4-Lane)
- Integrated Audio Codec
- Headphone Jack (with mic)
- Speaker output (8 ohm – 1W)
- Optical SPDIF output (optional)
- 2 x PDM digital microphones
- 7”, 10.1”, 15.6” and other custom size displays available on request
I/O PERIPHERALS
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. For more information, refer to NXP user’s manual.
- 1 x USB 3.1 Host Connector
- 1 x USB Type-C OTG Connector with DRP
- M.2 Key-B Connector for Modem or SSD expansion
- 2 x CAN BUS Interfaces with integrated High Speed Transceiver and CAN FD support up to 5 Mbit/s
- 2 x LAN 10/100/1000 RJ45 connectors
- 4 x RS-232 UART Connectors
- 2 x USB Debug Connectors with integrated FTDI Chip for Cortex-A53 and Cortex-M7 Debug
SYSTEM
- Single +12-24 VDC ±10% power supply
- On board regulators for all integrated functions
- Power consumption depends on application
OPERATING SYSTEMS
- Linux (Cortex® – A53 core) + FREERTOS (Cortex® – M7)
SOFTWARE
- OS Linux Yocto
- HTML 5, graphic SDK, QT(under responsibility and request from costumer) BSP supported
TEMPERATURE
These temperatures are the ambient operating temperature ranges for the components used into SoM, with exception of iMX8M Plus processor, which is specified on junction operating temperature range, 0-95°C for commercial version and -40-105°C for industrial version. SoM ambient operating temperature depends on the application and on the cooling measures applied.
- 0 to 70° for commercial version
- -40 to 85°C for industrial version
