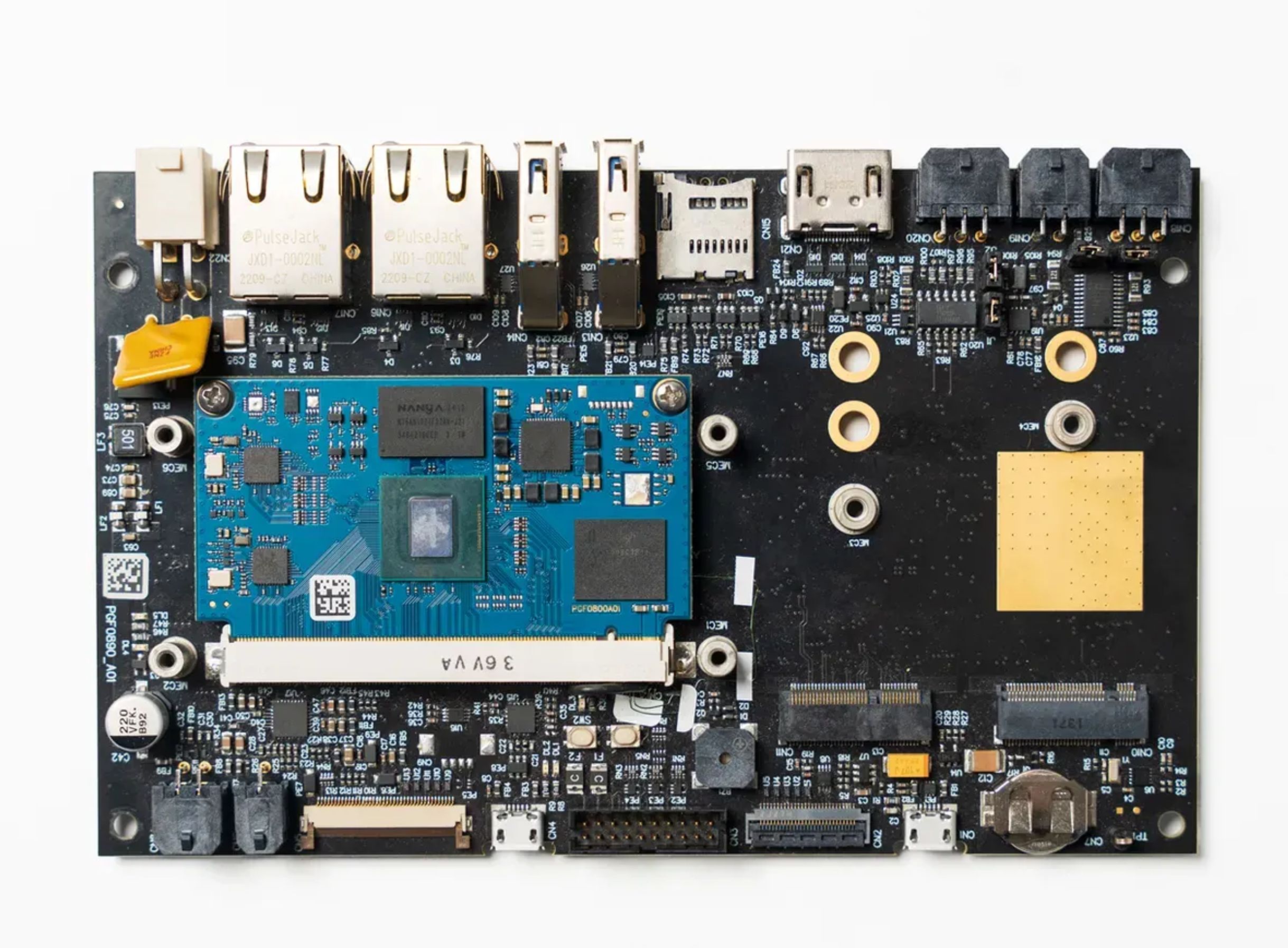

LeaSBC
NXP i.MX 8M Plus
- Scalable architectures compatible with NXP i.MX8M Plus CPU
- Based on Eva SoM
- High performance, ready for IA-driven future
- Ideal for multimedia applications
- Security subsystem with cryptographic accelerators
- Compact board dimensions only 160 x 100 mm
- Flexible and expandable solution
- Long longevity support
- EGF SW Upgrade platform for updates through USB pendrives or OTA
CPU
- NXP i.MX8M Plus Arm® Cortex®
- Quad/Quad+NPU up to 1.8GHz
- Standard or Lite CPU options
- Neural Processing Unit (NPU) option: 2.3 TOP/s Neural
- Network performance
- Additional Cortex-M7 Core up to 800 MHz
MEMORY
- Up to 8GByte LPDDR4
- eMMC from 8 to 256 GB
STORAGE / BOOT
- Up to 64 GB eMMC
- μSD slot
DISPLAY AND MULTIMEDIA INTERFACES
Please note that not all the functions may be available simultaneously, due to pin mux limitation of CPU case. We can check if our SoM is compatible with your application, contact us for more information.
Some functions require transceiver or additional circuitry on expansion board.
- GPU: GC7000UL / GC520L (2D/3D graphics acceleration)
Video Encode/Decode: 1080p60 H.265/H.264, VP9, VP8 - HDMI Display interface
MIPI-DSI Display interface
MIPI-CSI Camera Interface (4-lane) with HDR ISP - LVDS dual channel
Integrated Audio
PERIPHERALS
Please note that not all the functions may be available simultaneously, due to pin mux limitation of the CPU. We can check if our board suits your application, contact us for more information.
- 2 x USB 3.0 Host Connectors
- 1 x micro USB 2.0 Host Connector
- 1 x HDMI Display Connector
- 1 x Ethernet 1Gbps
- 1 x CAN BUS Interface with integrated Transceiver
- 1 x SW selectable RS-232 / RS-485 / RS-422 port
- 1 x RS-485 Full Duplex port
- 1 x M.2 key E Connector for Wi-Fi / BT Modules
- 1 x M.2 key B Connector for LTE Modules
- 1 x nano SIM connector
- Buzzer
- Temperature sensor
- RTC
- microSD slot
- Expansion Connector
SYSTEM
- Single +12-24 VDC ±10% power supply
OPERATING SYSTEMS
- Linux Embedded
SOFTWARE
- OS Linux Yocto
- HTML 5, graphic SDK, QT(under responsibility and request from costumer) BSP supported
HMI DEVELOP SDK
QT support is only under requests from Costumer, all responsibility and license costs are in charge on costumer.
- HTML5 supported
- QT
TEMPERATURE
These temperatures are the ambient operating temperature ranges for the components used into the board, with exception of i.MX8M series CPU which is specified on junction operating temperature range. Panel PC ambient operating temperature depends on the application and on the cooling measures applied.
- Industrial: From -40 °C to +85 °C
- Commercial: From 0°C to +70 °C
APPLICATIONS
- Industrial Automation
- Industrial remote controls
- Construction machinery
- Smart Retail
- Intelligent Grid
- Warehouse Systems
- Vending machines
- Robot Industries
